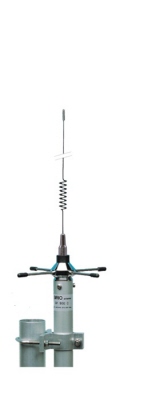

• Base station antenna, Omnidirectional
• Mono-band
• Medium-gain
• Made of anodized aluminium alloy
• Stainless steel hardware and radials
• Equipped with anodized aluminium bracket for an easy side mast installation
• 17/7 PH stainless steel spring whip
• For GSM and TACS systems
• Type: 1/4λ + 1/2λ colinear
• Frequency range: 870-960 MHz for GSM and TACS
• Impedance: 50Ω unbalanced
• Radiation (H-plane): 360° omnidirectional
• Radiation (E-plane): beamwidth at -3 dB = 40°
• Radiation angle: 10°
• Polarization: vertical
• Gain: 5.15 dBi
• S.W.R. in bandwidth: TX-band ≤ 2.0:1, RX-band ≤ 2.6:1
• Max. power: 50 Watts
• Feed system / position: direct / base
• Connector: N-female gold plated
