LCD-SCHERM BACKLIT 8 GRIJZE NIVEAUS
Vermogen: 1/25 W
De VHF RT850-serie is van het type "Black Box". Deze kan eenvoudig worden geïnstalleerd in een bak of console.
De bediening wordt gedaan vanaf de externe, compacte, waterdichte handset. het kan gemakkelijk worden geïnstalleerd waar het nodig is.
De handset is gemakkelijk te demonteren voor de veiligheid bij het verlaten van de boot.
• DSC Klasse D
• Dual watch 16 + geprogrammeerd kanaal
• Triple Sleep 16 + 9 + geprogrammeerd kanaal
• Man overboord raken in directe toegang
• ATIS-programmering dmv toetsenbord
• Stroomvoorziening 13,8V
• Stroomverbruik in stand-by 0,5 watt
• Input en output NMEA0183
• Internationale en Amerikaanse kanalen
• Optionele bedrade GPS-antenne met directe "plug & play" -verbinding op de marifoon
BACKLIT LCD SCREEN WITH 8 RANGE OF GREY
TRANSMISSION POWER : 1/25 W
IN AND OUTNMEA : 0183
DSC EQUIPMENT
Functions
• DSC Class D
• Dual watch 16 + progammed channel
• Tri watch with 16 + 9 + programmed channel
• MOB function through the bottom
• can be programmed with ATIS
• Power 13,8V
• Power consumption standby 0.5 watts
• NMEA 0183 IN and OUT
• US and international channels
• Optionnal GPS antenna « plug and play » directly on the VHF
Technical Specifications
Homologation : RTTE
Waterproof : Handset IPX7
Size (mm) : (size of the black box) 202x115x55 cm
Backlit LCD Display : Yes
International channels access : 56
Weight : 1,5 Kg
Digital selective call (DSC) : Yes
ATIS : Yes
Bluetooth function : No
Transmission Power: 1 or 25 W
Operating consumption : 1 or 6 A
Squelch : 9 range
Dual or Tri watch with channel 16 : Yes
Internal speaker : yes
Plug for external speaker : Yes
Normal operating voltage : 13,8 V cc
In and out NMEA : NMEA 0183
Warranty : 2 years
Size of the black box: 202 x 115 x 55mm
Size of the Handset : 155 x 66 x 34mm
Size of the LCD screen : 40 x 32mm
Color : Black
NAVICOM ®

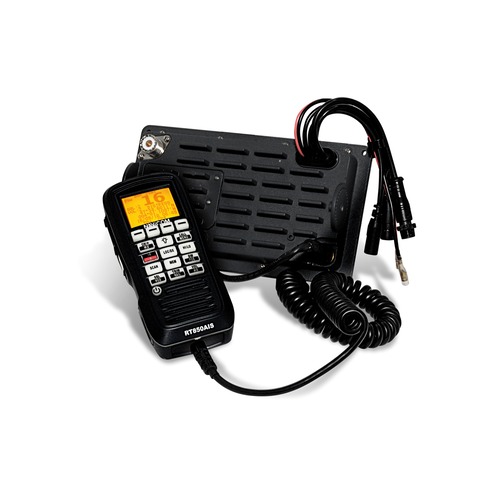

VHF RT 850 AIS
BACKLIT LCD SCREEN WITH 8 RANGE OF GREY
TRANSMISSION POWER : 1/25 W
IN AND OUTNMEA : 0183
DSC EQUIPMENT
AIS BUILT IN
Same as RT850 with AIS built in
Functions
• DSC Class D
• Dual watch 16 + progammed channel
• Tri watch with 16 + 9 + programmed channel
• MOB function through the bottom
• can be programmed with ATIS
• Power 13,8V
• Power consumption standby 0.5 watts
• NMEA 0183 IN and OUT
• US and international channels
• Optionnal GPS antenna « plug and play » directly on the VHF
• The AIS receiver built in broadcasts informations such as postion, speed, navigation status at regular intervals
• Safety alarms TCPA / CPA
Technical Specifications
Homologation : RTTE
Waterproof : Handset IPX7
Size (mm) : (size of the black box) 202x115x55 cm
Backlit LCD Display : Yes
International channels access : 56
Weight : 1,5 Kg
Digital selective call (DSC) : Yes
ATIS : Yes
Bluetooth function : No
Transmission Power: 1 or 25 W
Operating consumption : 1 or 6 A
Squelch : 9 range
Dual or Tri watch with channel 16 : Yes
Internal speaker : yes
Plug for external speaker : Yes
Normal operating voltage : 13,8 V cc
In and out NMEA : NMEA 0183
Warranty : 2 years
AIS built in : Yes
NAVICOM ®

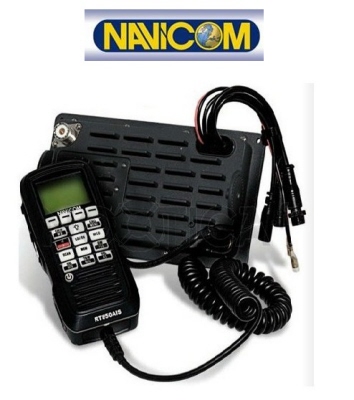

VHF RT 850 N2K
BACKLIT LCD SCREEN WITH 8 RANGE OF GREY
TRANSMISSION POWER : 1/25 W
IN AND OUTNMEA : 0183 and 2000
DSC EQUIPMENT
AIS BUILT IN
Same as RT850 plus In and out NMEA 2000
Functions
• DSC Class D
• Dual watch 16 + progammed channel
• Tri watch with 16 + 9 + programmed channel
• MOB function through the bottom
• can be programmed with ATIS
• Power 13,8V
• Power consumption standby 0.5 watts
• NMEA 0183 and NMEA 2000 IN and OUT
• US and international channels
• Optionnal GPS antenna « plug and play » directly on the VHF
Technical Specifications
Homologation : RTTE
Waterproof : Handset IPX7
Size (mm) : (size of the black box) 202x115x55 cm
Backlit LCD Display : Yes
International channels access : 56
Weight : 1,5 Kg
Digital selective call (DSC) : Yes
ATIS : Yes
Bluetooth function : No
Transmission Power: 1 or 25 W
Opgenomen vermogen : 1 of 6 A
Squelch : 9 instellingen
Dual or Tri watch with channel 16 : Yes
Internal speaker : yes
Plug for external speaker : Yes
Normal operating voltage : 13,8 V cc
In and out NMEA : NMEA 0183 + 2000
Warranty : 2 years
